Description:

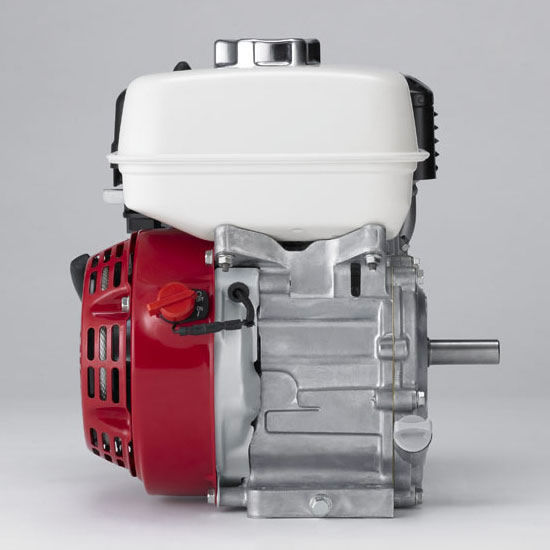

Honda GX200 QXE2 Horizontal OHV Engine with 12V, 196cc, 5.8 Net HP, 3/4" x 2-7/16" Crankshaft, Model GX200UT2QX2 / GX200UT2XQX2

Specifications:

Engine Information:
Brand: Honda
Model Number: GX200UT2QX2 / GX200UT2XQX2
Warranty: 3 year

Dimensions:
Weight: 37 Lbs
PTO Height: 4-11/64"

Power:
Power Output: 5.8 HP @ 3600 RPM
Torque: 9.1 lb-ft (12.4 Nm) @ 2500 RPM

Crankshaft:
Orientation: Horizontal
Type: Straight
Diameter: 3/4"
Length: 2-7/16"
Dimensions: 3/4" x 2-7/16"
End Tapped Size: 5/16"-24
Keyway: 3/16"
Rotation Direction: Counter-Clockwise

Other Engine Specs:
Starter Type: Recoil
Ignition System: Transistorized Magneto
Carburetor: Butterfly
Number of Cylinders: One
Cylinder Bore: Cast Iron Sleeve
Air Cleaner: Dual Element
Oil Capacity: 0.63 qt
Low Oil Alert: Yes
Fuel: Unleaded 86 Octane or Higher
Fuel Tank Capacity: 3.3 qt
Fuel Pump: N/A
Governor System: Mechanical
Controls: Manual Choke, Manual/Remote (Rod) Throttle
Bore x Stroke: 68mm x 54mm
Compression Ratio: 8.5 : 1
Muffler: Standard
